Sintratec S2

Sintratec S2

More than just a 3D printer

Starting at EUR 17'900

The Sintratec S2 has proven itself in the field as a reliable, industrial 3D printer. With a precise fiber laser and a sophisticated heating system, the Fusion Module ensures repeatability and consistent printing results.

Technical Specifications

With the S2 you can print high-quality parts and prototypes with exceptional properties and accuracy within a short amount of time.

Height × width × depth
Weight
Power supply

Laser Type

Laser Spot Size (FWHM)

1,490 × 990 × 600 mm

72 kg
230 V | 11 A max | 50 – 60 Hz
10W CW Fiber Laser with 1064 nm wavelength
145 μm
Height × width × depth
1,490 × 990 × 600 mm
Weight
72 kg
Power supply
230 V | 11 A max | 50 – 60 Hz
Laser Type
10W CW Fiber Laser with 1064 nm wavelength

Laser Spot Size (FWHM)

145 μm
Sintratec S2 Detail

Build Modules

Expand your 3D printing fleet with multiple Build Modules dedicated to different materials
to reduce downtimes and achieve a next-level throughput.

Sintratec MCU-220
Sintratec MCU-220

Need a lot of parts? The MCU-220 features a 90% larger print volume than its predecessor. The Build Module is compatible with all AMP Modules and built to meet the demands of industrial manufacturing.

Dimensions (h × w × d)
1100 × 850 × 530 mm
Build cylinder height

400 mm*

Build cylinder diameter
220 mm*

Build cylinder volume

15.2 l
Weight

65 kg

Sintratec MCU-160
Sintratec MCU-160

Need flexibility? The MCU-160 is our entry-level Build Module and ideally suited for the production of small to mid-sized series. As part of the AMP range, the core unit is backward and forward compatible.

Dimensions (h × w × d)
1100 × 850 × 530 mm
Build cylinder height

400 mm*

Build cylinder diameter
220 mm*

Build cylinder volume

15.2 l
Weight

65 kg

MODULARITY AND
SCALABILITY COMBINED

Material Handling Modules

For cleaning and preparing, we offer additional material handling solutions that are
designed to work seamlessly with all Build Modules.

Sintratec MHS
Sintratec MHS

After printing, simply move your Build Module into the dedicated Material Handling Station. In the MHS, you can then easily depowder your objects with a vacuum cleaner and maintain clear visibility thanks to an air filtration system.

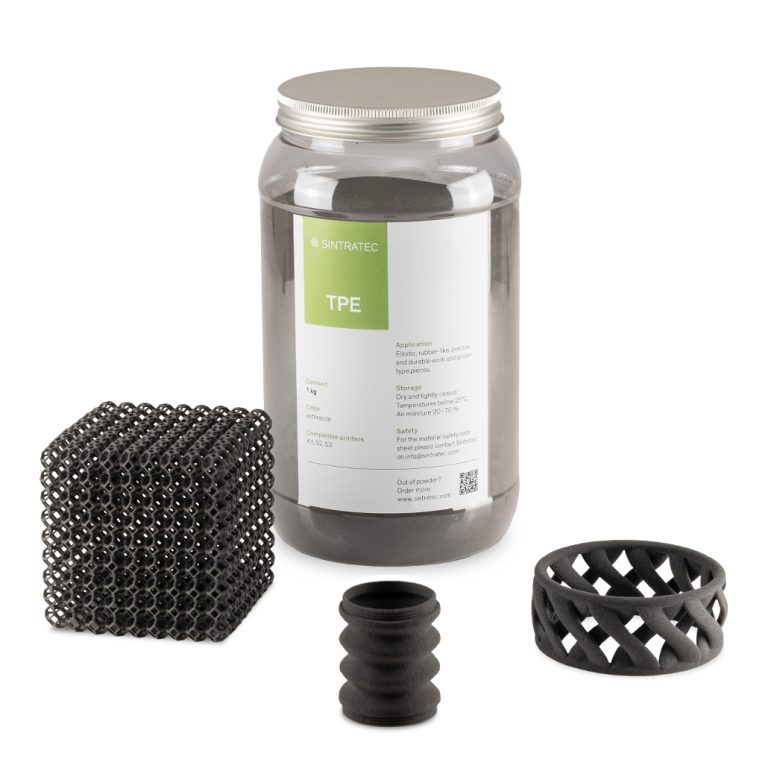

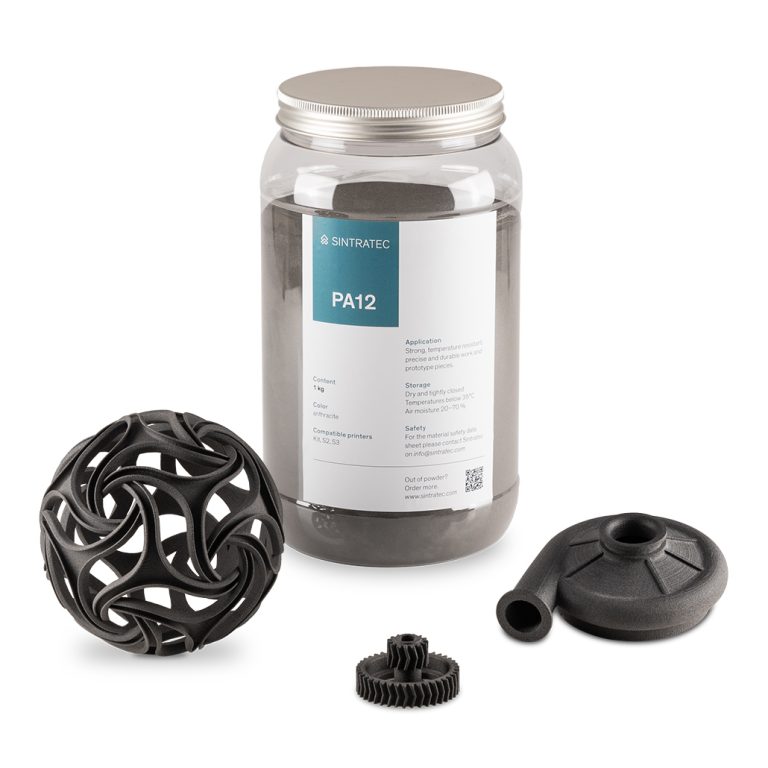

Materials

Our current material portfolio:

We are continuously working on bringing new SLS materials to the All-Material Platform.

Get an individual offer!

Ready for the future of manufacturing? Request your quote today!
